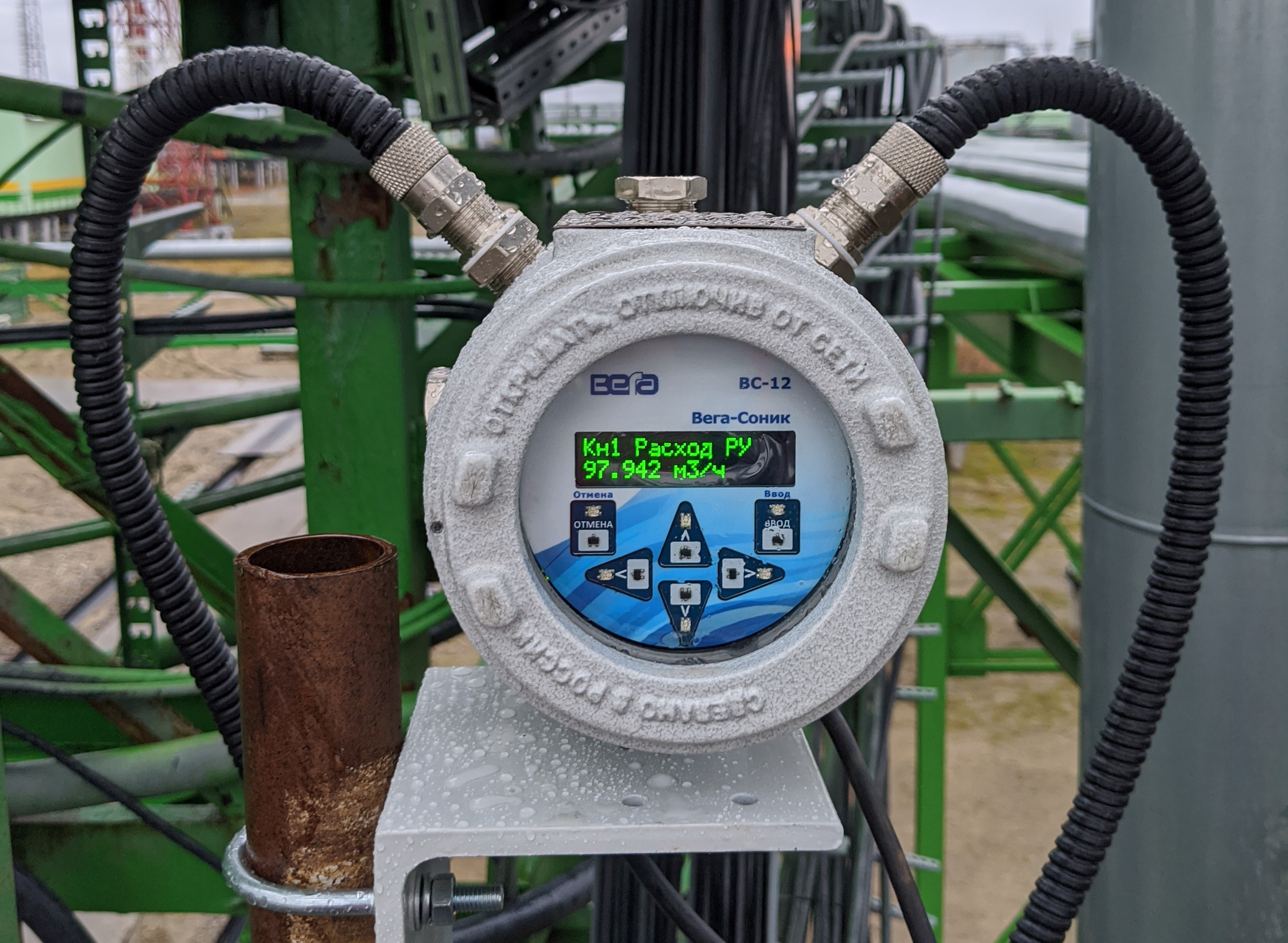

SMART Ultrasonic Gas Flare Meter VS-12

Main features:

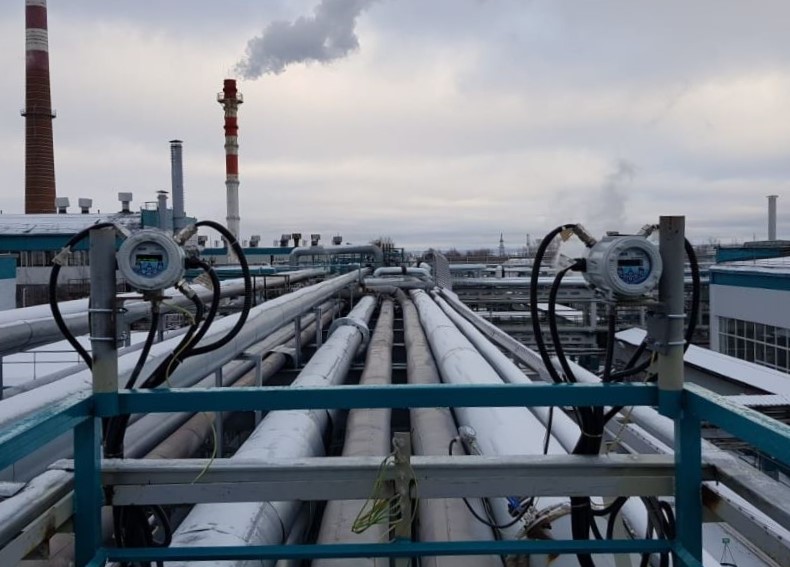

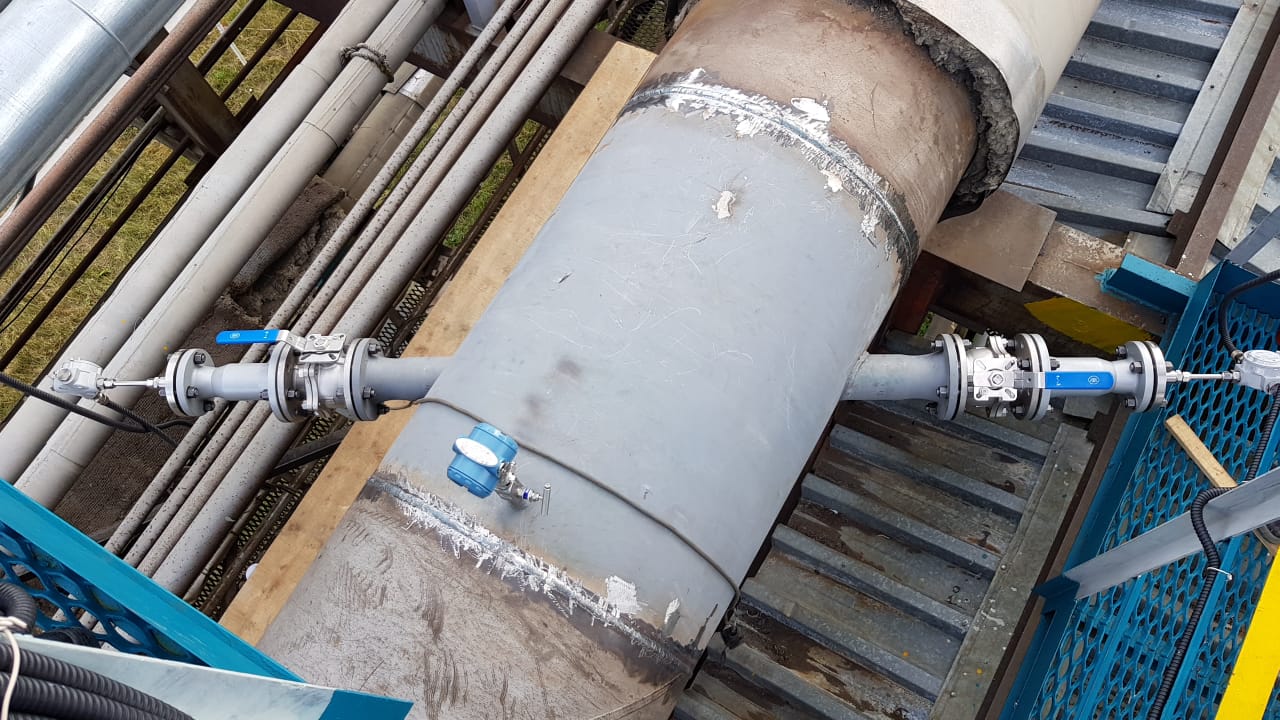

  • Cold and Hot tap installation on existed pipeline
  • Spool-piece available for higher accuracy
  • Sensors retraction without process shut-down
  • Patented MW calculation algorithm based on sound speed pressure and temperature of hydrocarbon gases and mixtures

TECHNICAL SPECIFICATIONS

ParameterValue
Velocity range, m/s  0,03 to 100

Pipelines outside diameter, mm

 80 to 1650
Channels (paths)  1 or 2
Fluid temperature, °С -60 to 260
Maximum operational pressure, MPa 24

Accuracy within velocity range, %

1 path:
(0,05≤V<0,1 m/s)
(0,1≤V<0,3 m/s)
(0,3≤V≤100 m/s)
2 paths:
(0,05≤V<0,1 m/s)
(0,1≤V<0,3 m/s)
(0,3≤V≤100 m/s)



±5,0
±3,5
±2,0

±3,5
±2,0
±1,0
MW Calculation, g/mol 2 to 160
Ambient temperature, °С  -50 to 60
Output signals:

3х 4–20 mA; 2х pulse/frequency
Digital communication interfaces  RS232, Modbus RTU RS485, HART
Power:
AC
DC

90…270 V (50/60 Hz)
18...36 V
Ingress Protection IP66

Ех-marking

 1ExdIICT6/T5

CERTIFICATES

MANUALS

Manuals are available upon request

  • P and L measurement guide
  • Wall thickness and inside diameter measurement guide
  • Sensors Installation manual (for cold and hot tap)
  • Operation and configuration manual
  • Dry Calibration manual
  • SW and programming manual
