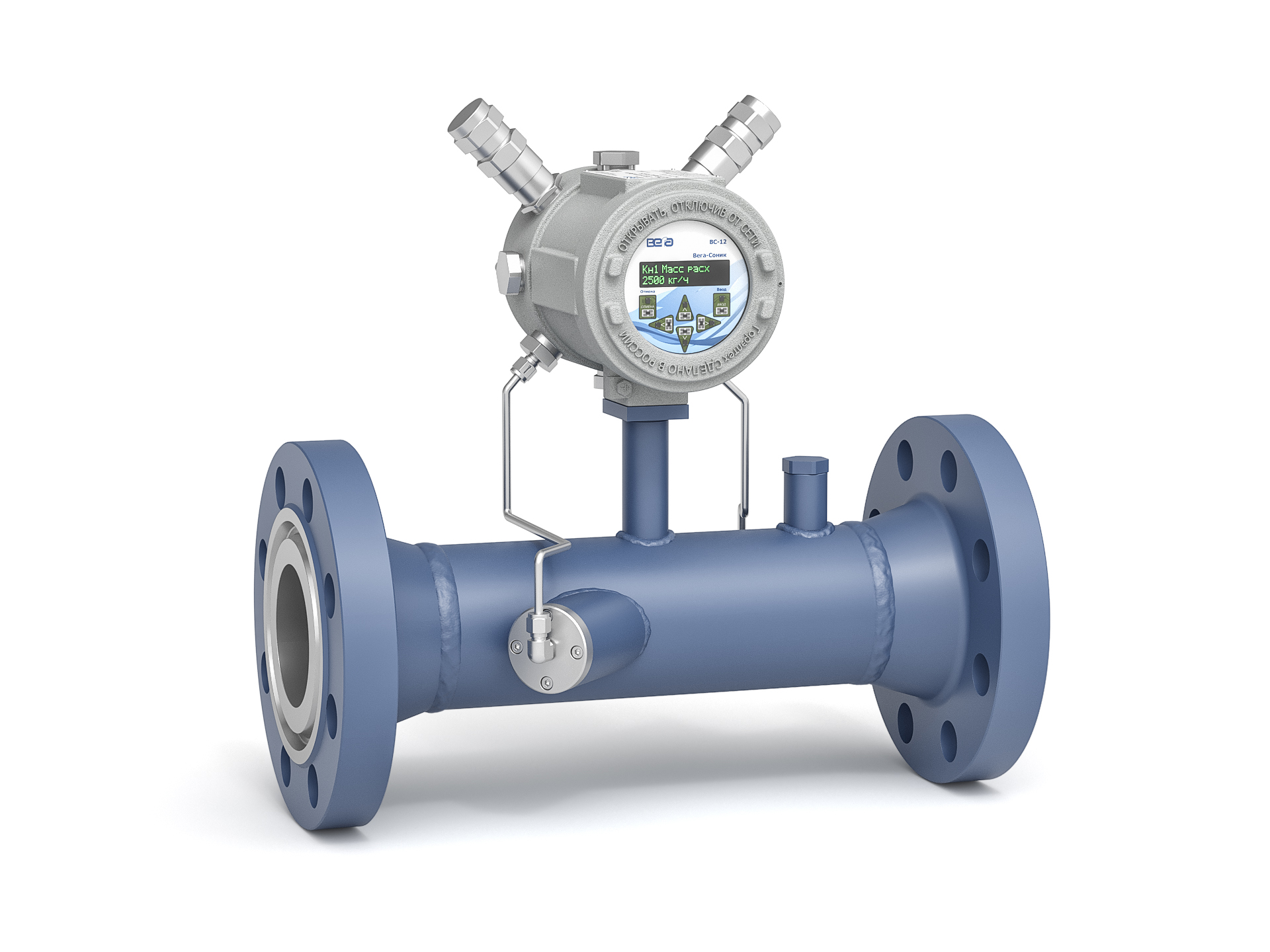

SMART Ultrasonic Gas Flow Meter VS-12PPD

Main features:

  • No moving parts
  • High accuracy
  • Reliable and robust design
  • Working pressure up to 42 MPa
  • One or two paths
  • ⁠⁠⁠⁠Patented MW calculation algorithm based on sound speed pressure and temperature of hydrocarbon gases and mixtures



Key Applications:

  • High pressure gas-lift systems
  • Gas transportation systems
  • Mass flow measurement at Refineries

    TECHNICAL SPECIFICATIONS

    ParameterValue
    Operational velocity range, m/s 0.1 to 45

    Nominal diameters

    		 DN25 to DN800
    Channels (paths) 1 or 2
    Fluid temperature range, °С -60 to 120
    Fluid pressure range, MPa Up to 42
    Accuracy, %:

    One path

    Two paths


     ±2,0

     ±1,0
    MW Calculation, g/mol 2 to 160
    Ambient temperature, °С -60 to 60
    Output signals 4–20 mA, pulse/frequency
    Digital communication interfaces RS232, Modbus RTU RS485, HART, Bluetooth
    Power:
    AC
    DC

    90...270 V (50±2 Hz)

    18...36 V
    Ingress protection IP67
    Ех-mark 1Ex d mb IIC T4 Gb

    manuals

    Manuals are available upon request

    • Operation and configuration manual
    • Dry Calibration manual
    • SW and programminig manual
